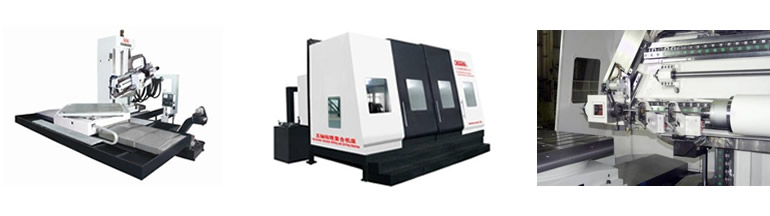

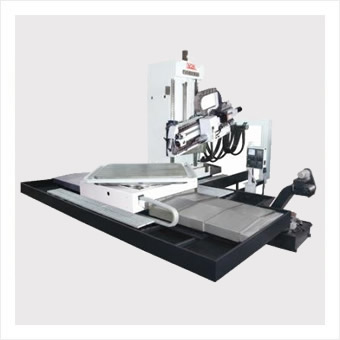

CAMDER®Series
기계사양 (Specification)
특징
- The machine comes with CNC rotary work table and maximum loading capacity up to 30tons
동영상보기
장비제원표
|
Model
|
Unit
|
CAMDER®1.6L
|
CAMDER®2.6L
|
CAMDER®3.6L
|
|
|
Drilling capacity
|
Gun drill machining hole diameter
|
mm
|
3~35
|
||
|
Ejector drill machining hole diameter
|
mm
|
-
|
18~50 (Optional)
|
18~65
|
|
|
Maximum drilling depth in gun drill operation
|
mm
|
1000(1200*)
|
1500
|
||
|
Maximum drilling depth in ejector drill operation
|
mm
|
-
|
1000 (Optional)
|
1000
|
|
|
Travel
|
Table horizontal (X)
|
mm
|
1000(1500*)
|
2500
|
3000
|
|
Ram travel (Y)
|
mm
|
1200
|
1500
|
||
|
Column horizontal (Z)
|
mm
|
500
|
800
|
||
|
Ram titling angle (A)
|
-
|
Clockwise 15°, counterclockwise 25°
|
|||
|
Spindle center to table top
|
mm
|
0~1200
|
0~1500
|
||
|
Distance from table center to spindle nose
|
mm
|
466~966
|
530~1330
|
630~1430
|
|
|
Spindle
|
Spindle bore taper
|
-
|
BT40
|
BT50
|
|
|
Max. spindle speed
|
rpm
|
6000
|
4000
|
||
|
Speed
|
X/Y/Z/W Rapid traverse rate
|
m/min
|
10
|
||
|
Ram maximum titling speed
|
Degree/min
|
215
|
|||
|
Table maximum rotation speed
|
rpm
|
2
|
|||
|
Power
|
Spindle motor
|
kW
|
15 / 18.5 (30min)
|
18.5 / 22 (30min)
|
|
|
X axis servo motor
|
N.m
|
30
|
40
|
||
|
Y axis servo motor
|
N.m
|
30
|
|||
|
Z axis servo motor
|
N.m
|
30
|
|||
|
W axis servo motor
|
N.m
|
12
|
30
|
||
|
A axis servo motor
|
N.m
|
22
|
|||
|
B axis servo motor
|
N.m
|
30
|
40
|
||
|
Total power requirement
|
kW
|
62
|
77
|
||
|
CNC indexing worktable
|
Max. loading capacity
|
ton
|
5(8*)
|
20
|
30
|
|
Size (Length x Width)
|
mm
|
1200 x 1000
|
2200 x 1600
|
2400 x 1800
|
|
|
Coolant system
|
Coolant pressure (gun drill)
|
MPa
|
2~11
|
||
|
Coolant pressure (ejector drill)
|
MPa
|
-
|
1.0~2.0 (Optional)
|
1.0~2.0
|
|
|
Rate of flow(gun drill)
|
L/min
|
6~110
|
|||
|
Rate of flow(ejector drill)
|
L/min
td>
|
-
|
40~125 (Optional)
|
40~163
|
|
|
Size & Weight
|
Floor space require (L x W)
|
mm
|
5860x5700
|
8240x7250
|
8688x7830
|
|
Machine height
|
mm
|
3720
|
4250
|
4780
|
|
|
Machine weight
|
ton
|
18
|
34
|
40
|
|
|
CNC system
|
|
-
|
FANUC 0i-MD
|
||
